High voltage IGBTs are the muscle behind modern power systems. They handle huge currents and voltages in everything from industrial drives to renewable energy converters. But these rugged components have one major weakness: they hate sudden temperature changes.

Why does thermal shock trouble these powerful switches? And what happens when high voltage IGBTs face rapid heating or cooling? Let’s break it down.

What Is a High Voltage IGBT?

Before we dive in, let’s clarify terms:

• IGBT = Insulated Gate Bipolar Transistor – A hybrid power switch combining MOSFET speed and bipolar transistor strength.

• High voltage IGBT = Designed for 1,200V and above, used in heavy-duty applications.

• High current IGBT modules = Packaged IGBTs built to handle massive power flows.

These devices are crucial for IGBT power conversion in trains, wind turbines, and factories. But they’re not invincible.

The Thermal Shock Problem

High voltage IGBTs fail fast when temperatures swing suddenly. Here’s why:

1. Material Stress

• IGBTs contain silicon, copper, and ceramics.

• These materials expand/contract at different rates.

• Sudden heat cracks solder joints. Rapid cooling warps metal layers.

2. Bond Wire Fatigue

• Tiny wires connect silicon dies to the package.

• Repeated thermal cycling makes them brittle.

• Eventually, they snap – killing the IGBT module.

3. Gate Oxide Damage

• The insulated gate is ultra-thin (nanometers thick).

• Temperature spikes create tiny defects.

• Over time, this degrades switching performance.

Where Does Thermal Shock Happen?

High power IGBT systems face temperature swings in:

1. Motor Drives (Learn more details)

• Heavy machinery starts/stops abruptly.

• Current surges heat high voltage IGBTs instantly.

2. Solar Inverters (Learn more details)

• Clouds pass over panels → sudden load changes.

• IGBTs heat up or cool down within seconds.

3. Electric Vehicles (Learn more details)

• Accelerating hard heats IGBTs.

• Regenerative braking cools them fast.

How to Protect High Voltage IGBTs

Want your IGBT modules to last? Follow these rules:

1. Slow Down Switching

• Avoid ultra-fast transitions during temperature extremes.

• Gentle ramping reduces thermal stress.

2. Improve Cooling

• Use liquid cooling for stable temperatures.

• Never let heatsinks get clogged with dust.

3. Monitor Temperatures

• Embed sensors near IGBT dies.

• Shut down if rates exceed 10°C/second.

4. Choose Rugged Modules

• Some high current IGBT modules handle thermal cycling better.

• Look for "power cycling" ratings in datasheets.

Real-World Failures

• Case 1: A wind turbine’s high voltage IGBT failed after 3 months. Reason? Rapid cloud cover changes caused 200+ daily thermal cycles.

• Case 2: A subway train’s motor drive died prematurely. Investigation found abrupt acceleration/braking cracked bond wires.

Future Solutions

Engineers are fighting back with:

• Self-healing materials – Repair tiny cracks automatically.

• 3D-printed cooling – Microchannels for even heat spread.

• AI thermal control – Predict and prevent shock events.

Conclusion

High voltage IGBTs power our world – but they’re fragile to temperature spikes. By understanding why they hate sudden changes, we can design systems that last.

Next time you work with IGBT power electronics, remember: keep temperatures steady, or pay the price.

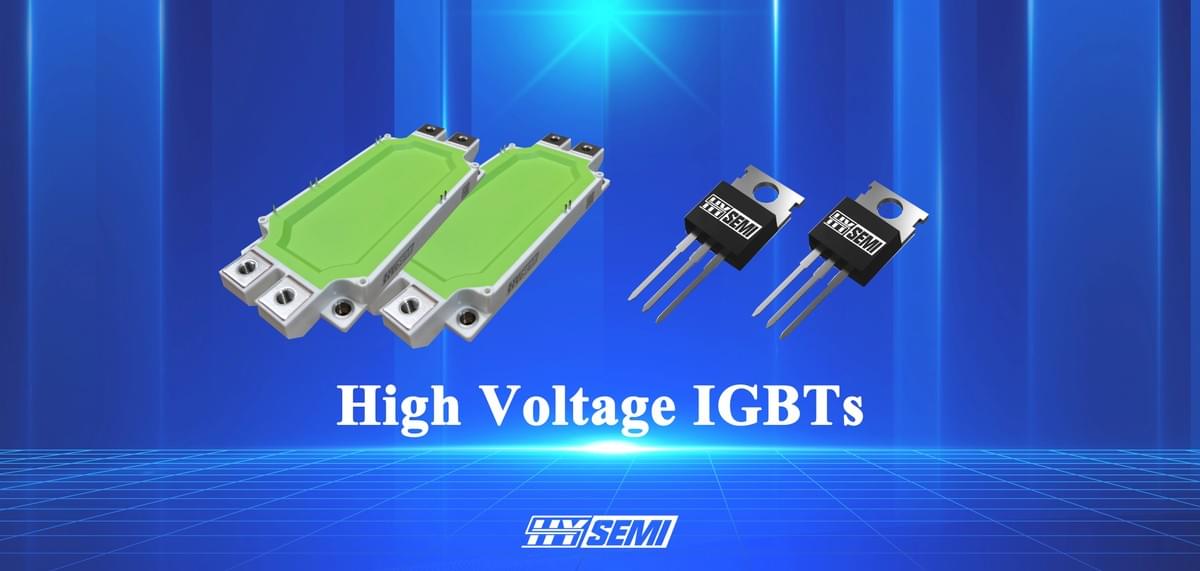

(SHY Semi's IGBT Modules)
