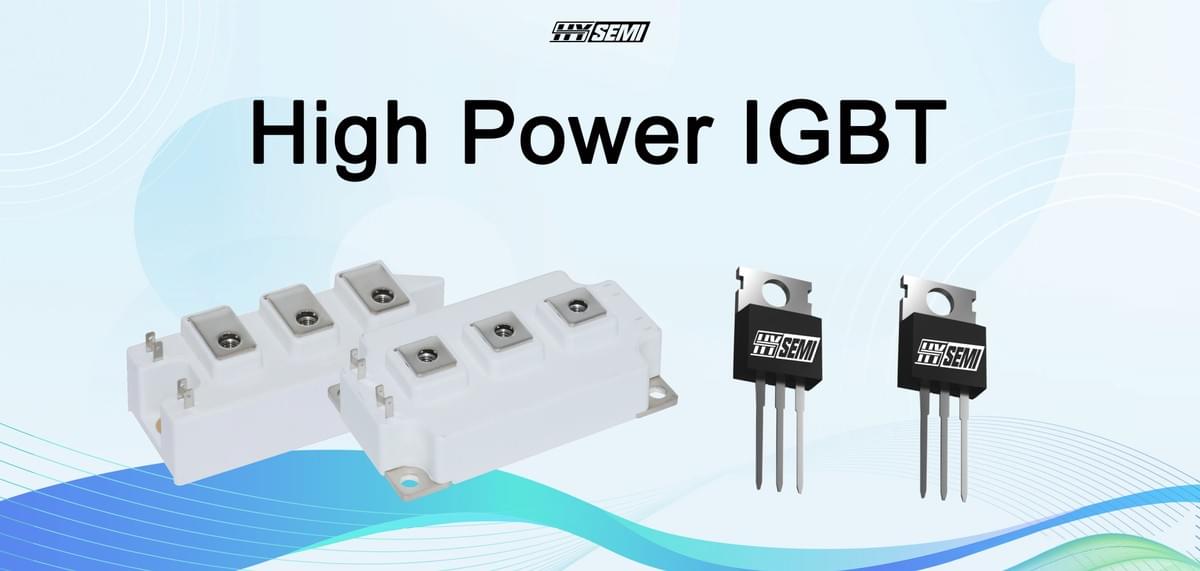

The Backbone of Modern Power Grids

Electric grids face growing demands. High power IGBT technology provides the solution. These advanced semiconductors allow grids to handle higher voltages with better efficiency.

The insulated gate bipolar transistor (IGBT) has evolved. Modern high power IGBT designs now support:

✔ Faster switching – Improves grid responsiveness

✔ Higher voltages – Enables long-distance transmission

✔ Better control – Reduces energy waste

This article examines how high power IGBT upgrades transform grid infrastructure.



Why Grids Need High Power IGBT

1. Handling Rising Energy Demands

IGBT power components manage increasing loads

Support renewable energy integration

Prevent overloads during peak usage



2. Enabling Smart Grids

High voltage IGBT allows precise voltage control

Supports real-time grid adjustments

Reduces blackout risks



3. Improving Efficiency

Insulated gate technology minimizes power loss

Cuts operational costs by up to 20%

Extends equipment lifespan



Key Applications in Grid Infrastructure

1. High-Voltage Direct Current (HVDC) Transmission

High power IGBT enables efficient long-distance power transfer

Loses less energy than AC over hundreds of miles



2. Flexible AC Transmission Systems (FACTS)

IGBT power devices stabilize voltage fluctuations

Prevent disruptions from solar/wind variability



3. Grid-Scale Energy Storage

Manages charge/discharge cycles in large batteries

High voltage IGBT handles rapid power shifts



Technology Advancements

1. Improved Packaging

SiC power module packaging techniques enhance cooling

Allows higher power density in substations



2. Higher Voltage Ratings

Next-gen high voltage IGBT reaches 6.5kV+

Supports ultra-high-voltage transmission



3. Smart Monitoring

Built-in sensors predict maintenance needs

Prevents unexpected failures

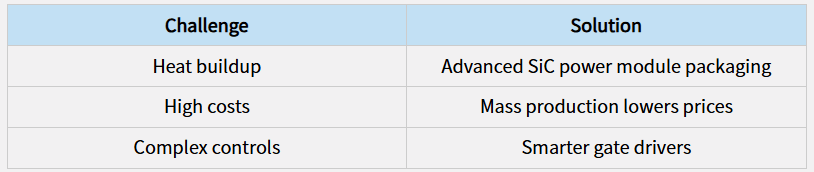

Challenges & Solutions

Challenge	Solution
Heat buildup	Advanced SiC power module packaging
High costs	Mass production lowers prices
Complex controls	Smarter gate drivers


Future Grid Innovations

Wider renewable integration – Handles solar/wind fluctuations

AI-optimized switching – Further reduces energy loss

Modular designs – Easier grid upgrades



Real-World Impact

1. European Super Grid

Uses high power IGBT for cross-border HVDC links



2. US Grid ModernizationIGBT power upgrades improve resilience



3. Asian Megacity Grids

High voltage IGBT supports dense urban demand



Conclusion

High power IGBT technology enables:

✔ More efficient grids

✔ Better renewable integration

✔ Future-ready infrastructure

As energy needs grow, insulated gate bipolar transistor advancements will keep grids reliable and smart.
