Power electronics demand robust protection. IPM module protection offers built-in safeguards, while discrete solutions rely on external components. Which is better for your application? This article compares both approaches, highlighting:

✔ Key differences in design

✔ Performance trade-offs

✔ Best-use scenarios

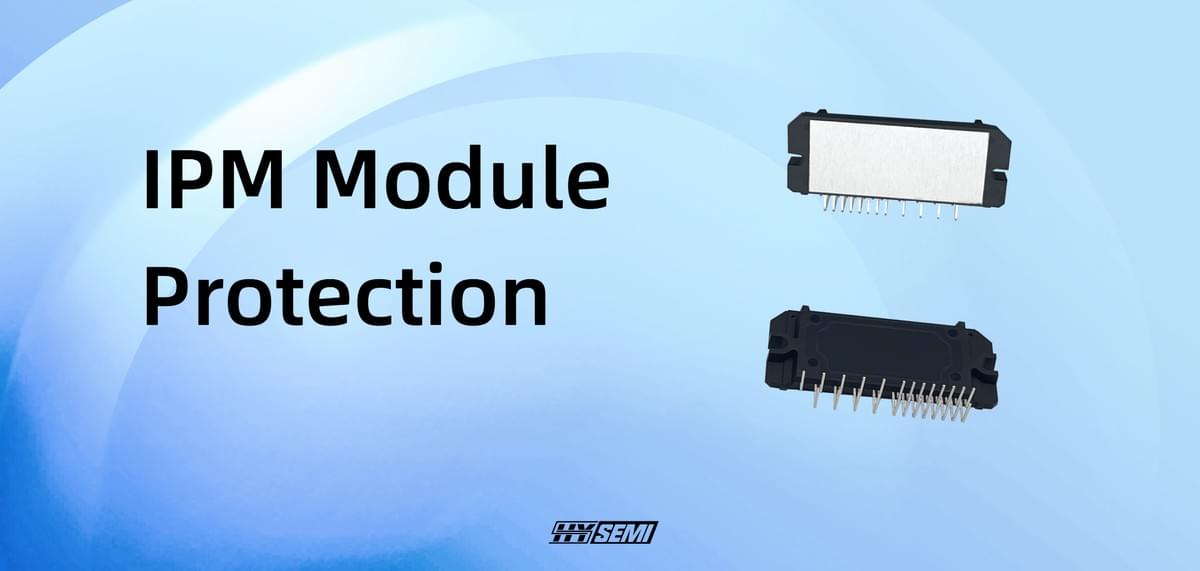

What is IPM Module Protection?

An intelligent power module integrates:

Power switches (IGBTs/MOSFETs)

Gate drivers

IPM module protection features:

Overcurrent shutdown

Thermal monitoring

Undervoltage lockout

This self-contained design simplifies system architecture.



Discrete Protection Solutions

Traditional setups use:

Separate power devices

External protection ICs

Additional PCB space

Common safeguards include:

Fuses

Current sensors

Temperature probes



Key Differences

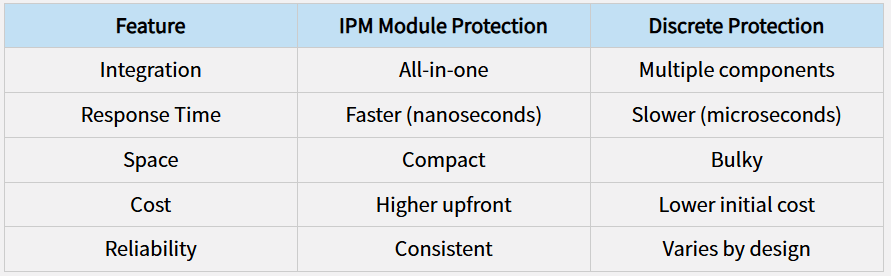

Feature	IPM Module Protection	Discrete Protection
Integration	All-in-one	Multiple components
Response Time	Faster (nanoseconds)	Slower (microseconds)
Space	Compact	Bulky
Cost	Higher upfront	Lower initial cost
Reliability	Consistent	Varies by design


Performance Comparison

1. Fault Response

IPM module protection reacts instantly to shorts/overheating

Discrete circuits have detection delays



2. Thermal Management

Intelligent power module inverter designs include thermal pads

Discrete solutions need separate cooling



3. Design Complexity

IPMs reduce component count by 60%+

Discrete requires careful PCB layout



When to Choose IPM Protection

1. High-Reliability Systems

Medical equipment

Aerospace power systems



2. Space-Constrained Designs

EV traction inverters

Solar microinverters



3. Mass Production

Fewer assembly steps

Consistent performance



When Discrete Solutions Work

1. Custom Protection Needs

Unique fault thresholds

Specialized monitoring



2. Cost-Sensitive Projects

Low-volume production

Legacy system upgrades



3. Extreme Environments

Customized for specific stress factors



Testing & Validation

How to Check IPM Module

1. Verify gate signals

2. Monitor temperature rise

3. Test fault responses

IPM Module Testing Tips

1. Use manufacturer’s evaluation boards

2. Stress-test protection triggers

3. Compare datasheet specs



Future Trends

1. Smarter IPM module protection with AI diagnostics

2. Wider voltage ranges for grid applications

3. Self-healing materials for longer life



Conclusion

IPM module protection provides:

✔ Faster response to faults

✔ Space savings

✔ Simplified design

Discrete solutions allow more customization but require careful engineering. Choose based on your priorities.
