Power electronics face a big challenge: switching losses. These losses waste energy and create heat. Fast recovery diodes solve this problem. Their unique fast recovery diode characteristics make them ideal for high-speed circuits. This article explains:

• Key characteristics of fast recovery diode

• How they cut switching losses

• Where they work best

• How they differ from standard diodes

What Are Fast Recovery Diodes?

Fast recovery diodes are special semiconductors. They switch off much faster than regular diodes. This speed comes from their design and materials.

Key fast recovery diode characteristics:

• Reverse recovery time under 100ns (some under 50ns)

• Low forward voltage drop

• High surge current tolerance

• Good thermal stability

These traits make them perfect for fast recovery diodes for high speed switching applications.

The Switching Loss Problem

All diodes have a problem when switching off. For a brief moment, they conduct backward. This wastes power as:

• Heat

• Electrical noise

• Energy loss

Standard diodes may take microseconds to recover. Fast types recover in nanoseconds. The shorter recovery means less wasted energy.

How Fast Recovery Diode Characteristics Help

1. Ultra-Fast Reverse Recovery

The main fast recovery diode working principle is quick charge removal. This cuts the reverse current spike that causes losses.

2. Lower Forward Voltage

Less voltage drop means less power wasted during normal operation.

3. Better Thermal Performance

They handle heat better than standard diodes. This prevents damage from switching losses.

4. Cleaner Switching

Fast recovery reduces electrical noise. This protects other components.

Key Applications

The application of fast recovery diode covers many areas:

1. Switch-Mode Power Supplies (SMPS)

Used in:

• Computer power supplies

• Phone chargers

• LED drivers

2. Motor Drives

Help control speed in:

• Industrial motors

• Electric vehicles

• HVAC systems

3. Solar Inverters

Work with ultra fast recovery rectifier to convert DC to AC efficiently.

4. Welding Equipment

Handle rapid current changes in arc welding machines.

Testing Fast Recovery Diodes

Want to know how to test fast recovery diode? Here's a simple method:

1. Use a diode tester or multimeter

2. Check forward voltage (should be 0.7-1.1V)

3. Measure reverse recovery time with pulse generator

4. Verify maximum ratings match specs

Good diodes show:

• Consistent forward voltage

• Quick reverse recovery

• No leakage current

Fast Recovery vs. Other Diodes

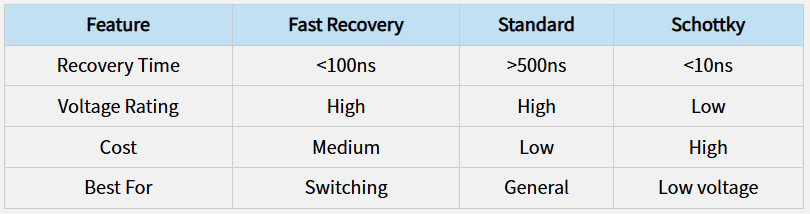

Understanding the difference fast recovery vs soft recovery diodes helps in selection:

Fast recovery diodes balance speed and power handling. They work where standard diodes fail and Schottky diodes can't handle the voltage.

Choosing the Right Fast Recovery Diode

Consider these factors:

• Voltage rating (higher than your circuit needs)

• Current capacity (match your load)

• Recovery time (faster for high frequency)

• Package type (for heat dissipation)

For very fast circuits, look at ultra fast recovery rectifier options.

Future of Fast Recovery Diodes

New improvements include:

• Silicon carbide (SiC) diodes - faster and more efficient

• Smaller packages - save space

• Integrated modules - easier to use

These advances will help solve switching losses in next-gen power systems.

Conclusion

Fast recovery diode characteristics solve switching loss problems effectively. Their quick recovery, low loss, and thermal stability make them essential in modern power electronics. From power supplies to motor drives, these diodes improve efficiency where speed matters. Understanding their working principle helps engineers design better systems. For high-speed switching needs, fast recovery diodes offer the best balance of performance and reliability.
