High-power applications need smart solutions. IPM power modules (Intelligent Power Modules) deliver exactly that. They combine power switches, drivers, and protection in one package. From industrial motors to electric vehicles, IPM modules handle high currents and voltages efficiently. Their built-in intelligence reduces design complexity while improving performance. This article explains why high-power systems increasingly depend on IPM power module technology.

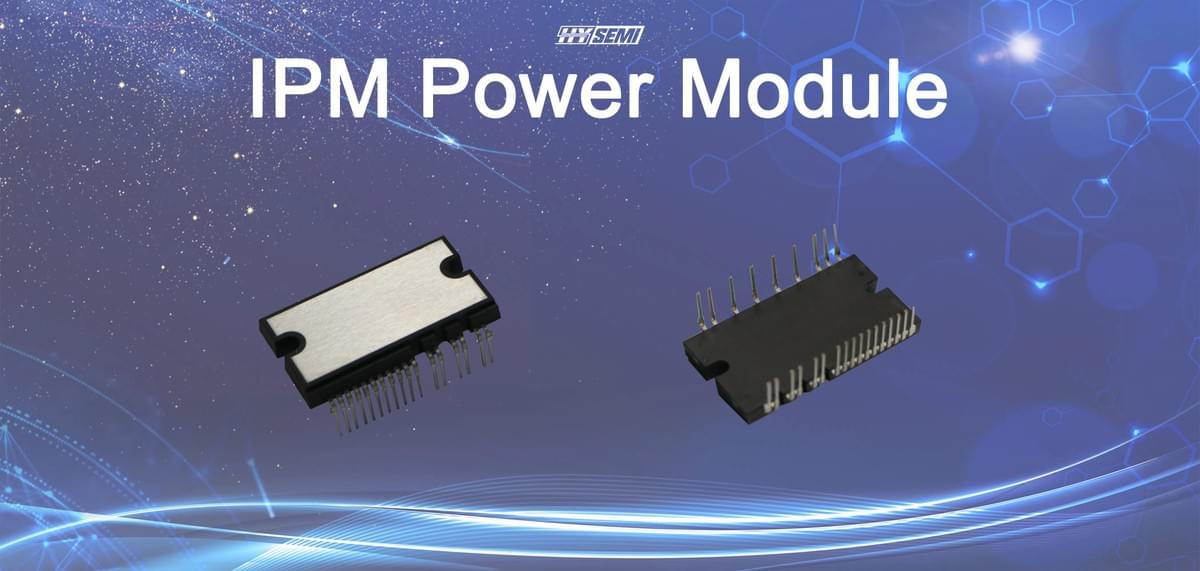

What Is an IPM Power Module?

An intelligent power module (IPM) integrates:

• Power switches (IGBTs or MOSFETs)

• Gate drivers

• Protection circuits

• Thermal sensors

Unlike discrete components, IGBT IPM power modules work as complete systems. They optimize switching, reduce heat, and prevent failures.

Key Reasons High-Power Systems Use IPM Modules

1. Higher Efficiency

IPM power modules minimize energy loss. Their optimized layout cuts switching losses by up to 30% vs. discrete designs.

2. Better Thermal Management

Built-in heat sinks and sensors prevent overheating. This extends lifespan in high-power applications.

3. Compact Design

Replacing multiple parts with one intelligent power module IPM saves space. Critical for EVs and solar inverters.

4. Built-In Protection

IPMs include:

• Short-circuit detection

• Overcurrent shutdown

• Undervoltage lockout
  This prevents catastrophic failures.

5. Easier Design Process

Pre-tested modules reduce development time. Engineers avoid complex driver and protection circuits.

Where Are IPM Power Modules Used?

1. Electric Vehicles (EVs)

    Learn more details

EV drivetrains use IPM modules for:

• Motor control

• Battery management

• Fast charging systems

2. Industrial Motor Drives

    Learn more details

Factories rely on IGBT IPM power modules for:

• Precision speed control

• High torque operation

• Energy-efficient pumps/compressors

3. Renewable Energy Systems

    Learn more details

Solar/wind inverters need IPM power modules for:

• Efficient DC-AC conversion

• Grid synchronization

• Maximum power tracking

4. Home Appliances

    Learn more details

Modern air conditioners and refrigerators use intelligent power module IPM for:

• Variable speed control

• Quieter operation

• Lower energy bills

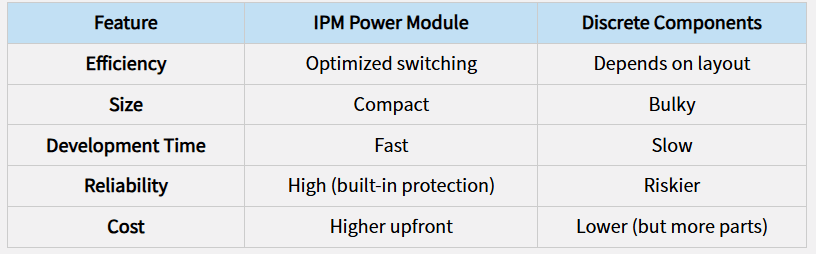

IPM vs. Discrete Power Designs

For high-power systems, IPM modules save money long-term through reliability and efficiency.

Future of IPM Technology

Next-gen IPM power modules will feature:

• Wide-bandgap materials (SiC/GaN) for higher efficiency

• Smarter sensors for predictive maintenance

• Higher integration with controllers

As power demands grow, intelligent power modules will become even more critical.

Conclusion

High-power applications choose IPM power modules for good reasons. They offer efficiency, reliability, and space savings that discrete designs can't match. From factories to EVs, IPM modules solve the toughest power challenges. Engineers who adopt them gain a competitive edge in performance and cost.
